Visualize HARP2 L2 aerosol product (FastMAPOL)

Visualize HARP2 L2 aerosol product (FastMAPOL)#

Authors: Meng Gao (NASA, SSAI), Sean Foley (NASA, MSU), Kamal Aryal (UMBC)

Summary#

This notebook explores the HARP2 Level 2 (L2) aerosol product derived from the joint aerosol and surface retrieval algorithm: FastMAPOL (Fast Multi-Angle Polarimetric Ocean and Land algorithm). For more detailed information about the algorithm, please refer to the relevant documentation.

Similar to the SPEXone notebook, we will analyze a scene from the Los Angeles wildfire, which includes both smoke and dust events. The analysis will focus on aerosol optical depth, absorption, and size information.

Note that the HARP2 Level 1 (L1) data is still undergoing calibration improvements, which may affect the quality of the L2 data. Data quality is evaluated using several metrics, which are reviewed at the end of this tutorial.

Learning Objectives#

By the end of this notebook, you will understand:

How to acquire HARP2 L2 data
What aerosol products are available
How to visualize basic aerosol properties
How to evaluate data quality

Contents#

Setup
Get Level-2 Data
Understanding HARP2 L2 product structure
Visulize HARP2 L2 aerosol properties
Improve data quality: filter low AOD pixels
Advanced quality assessment
Optional: Multi-angle data mask for cloud and data screening
Optional: pixel level uncertainty estimation
Reference

1. Setup#

Begin by importing all of the packages used in this notebook. If your kernel uses an environment defined following the guidance on the tutorials page, then the imports will be successful.

from pathlib import Path

import cartopy.crs as ccrs
import earthaccess
import matplotlib.pyplot as plt
import numpy as np
import requests
import xarray as xr

auth = earthaccess.login(persist=True)
fs = earthaccess.get_fsspec_https_session()

back to top

4. Visulize HARP2 L2 aerosol properties#

In this example, we visualize the aerosol properties for a scene during LA wild fire with both smoke and dust events. We read the total aerosol optical depth, single scattering albedo, and fine mode volume fraction as below:

aot = dataset["aot"].values
ssa = dataset["ssa"].values
fvf = dataset["fvf"].values
aot.shape, ssa.shape, fvf.shape

((395, 519, 4), (395, 519, 4), (395, 519))

We also need the spatial and angle dimensions as below:

lat = dataset["latitude"].values
lon = dataset["longitude"].values
plot_range = [lon.min(), lon.max(), lat.min(), lat.max()]
wavelength = dataset["wavelength_3d"].values
print(wavelength)

[440. 550. 670. 870.]

For future L2 product, the wavelength variable will be called simple wavelength, rather than wavelength_3d

def plot_l2_product(
    data, plot_range, label, title, vmin, vmax, figsize=(12, 4), cmap="viridis"
):
    """Make map and histogram (default)."""

    # Create a figure with two subplots: 1 for map, 1 for histogram
    fig = plt.figure(figsize=figsize)
    gs = fig.add_gridspec(1, 2, width_ratios=[3, 1], wspace=0.3)

    # Map subplot
    ax_map = fig.add_subplot(gs[0], projection=ccrs.PlateCarree())
    ax_map.set_extent(plot_range, crs=ccrs.PlateCarree())
    ax_map.coastlines(resolution="110m", color="black", linewidth=0.8)
    ax_map.gridlines(draw_labels=True)

    # Assume lon and lat are defined globally or passed in
    pm = ax_map.pcolormesh(
        lon, lat, data, vmin=vmin, vmax=vmax, transform=ccrs.PlateCarree(), cmap=cmap
    )
    plt.colorbar(pm, ax=ax_map, orientation="vertical", pad=0.1, label=label)
    ax_map.set_title(title, fontsize=12)

    # Histogram subplot
    ax_hist = fig.add_subplot(gs[1])
    flattened_data = data[~np.isnan(data)]  # Remove NaNs for histogram
    valid_count = np.sum(~np.isnan(flattened_data))
    ax_hist.hist(
        flattened_data, bins=40, color="gray", range=[vmin, vmax], edgecolor="black"
    )
    ax_hist.set_xlabel(label)
    ax_hist.set_ylabel("Count")
    ax_hist.set_title("Histogram: N=" + str(valid_count))

    # plt.tight_layout()
    plt.show()

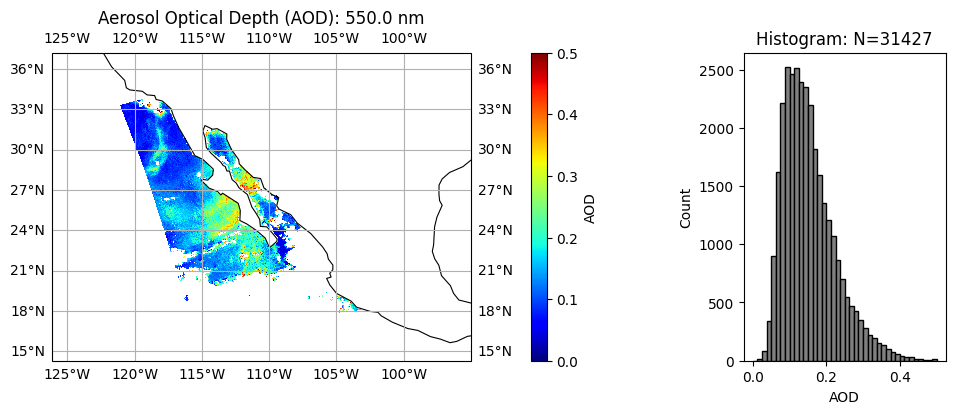

wavelength_index = 1
title = "Aerosol Optical Depth (AOD): " + str(wavelength[wavelength_index]) + " nm"
label = "AOD"
data = aot[:, :, wavelength_index]
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=0.5, cmap="jet"
)

../../_images/6c765b25b8ff29994656d574b3fd76b5b737df02ef6b7f00136e7dcbc7d0bff6.png

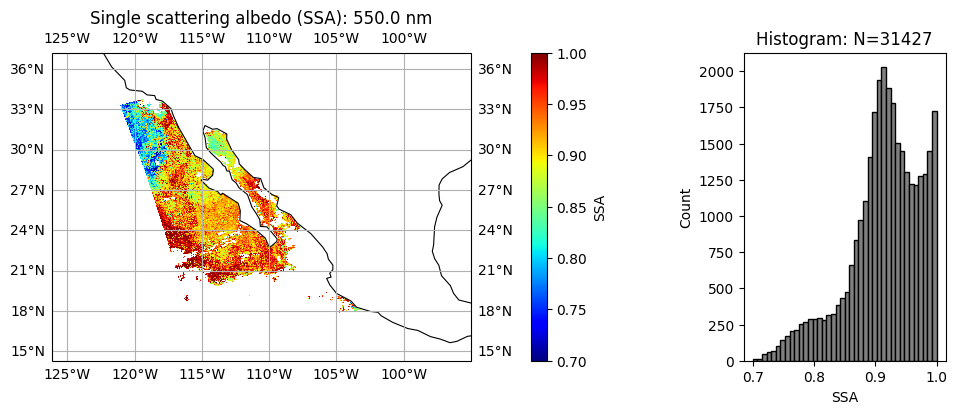

wavelength_index = 1
title = "Single scattering albedo (SSA): " + str(wavelength[wavelength_index]) + " nm"
label = "SSA"
data = ssa[:, :, wavelength_index]
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0.7, vmax=1, cmap="jet"
)

../../_images/db49b7757be2149923f3c5574cad01509dd5dd417d419e737854d7784fa81cd1.png

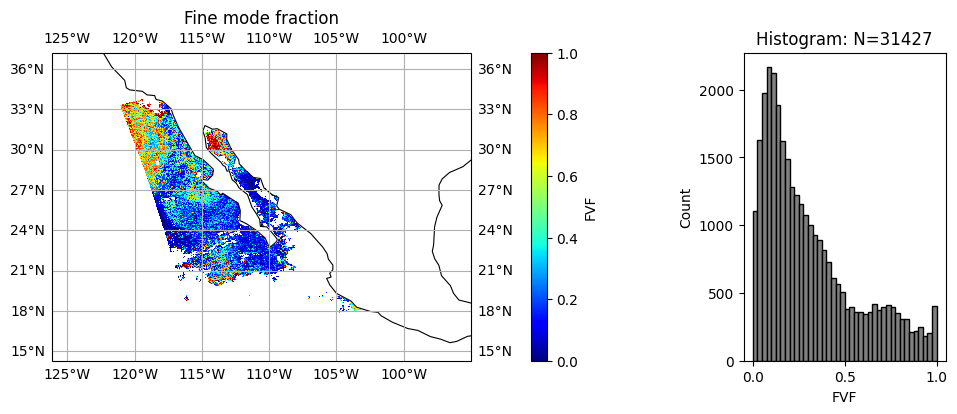

wavelength_index = 1
title = "Fine mode fraction"
label = "FVF"
data = fvf
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=1, cmap="jet"
)

../../_images/4f71f2dc89da8fe8b329329c92e133f7bdae5fd2dfd193e6f4cd94c8c31e1ebb.png

back to top

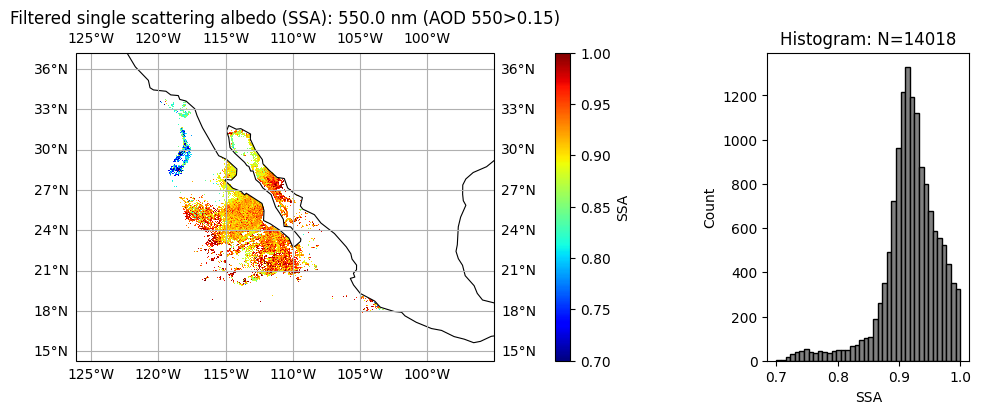

5. Improve data quality: filter low AOD pixels#

Aerosol absorption and microphysics have larger uncertainties when aerosol loading is low. User can further remove low AOD cases when necessary. We can clearly see, two type of aerosol events with relatively high AOD, the upper one with high absorption (low SSA) and small size (high FVF), probably smoke due to fire; the lower one with less absorption (high SSA) and large size (low FVF), probably dust.

wavelength_index = 1
aot_min = 0.15
title = (
    "Filtered single scattering albedo (SSA): "
    + str(wavelength[wavelength_index])
    + " nm (AOD 550>"
    + str(aot_min)
    + ")"
)
label = "SSA"
data = filtered_ssa = np.where(
    aot[:, :, wavelength_index] >= aot_min, ssa[:, :, wavelength_index], np.nan
)
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0.7, vmax=1, cmap="jet"
)

../../_images/a332b95a64934b05cbc4a25fa38607e8ec326f9d75703885f41bee58afa4cc06.png

The difference in appearance (after matplotlib automatically normalizes the data) is negligible, but the difference in the physical meaning of the array values is quite important.

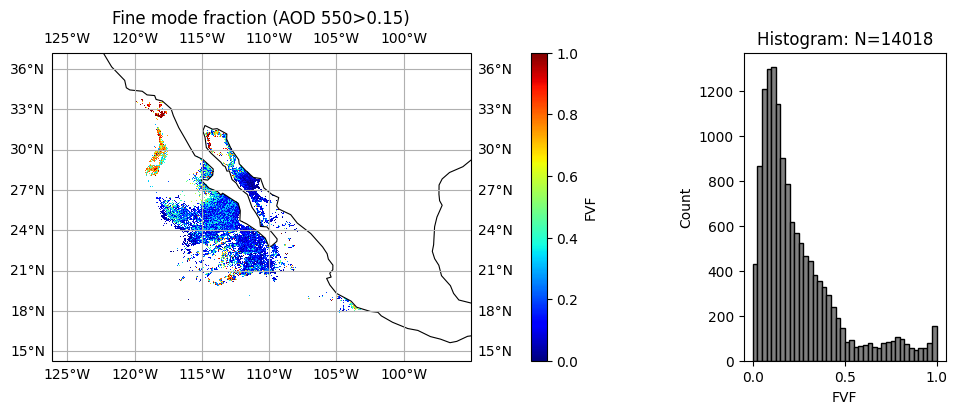

wavelength_index = 1
aot_min = 0.15
title = "Fine mode fraction (AOD 550>" + str(aot_min) + ")"
label = "FVF"
data = filtered_ssa = np.where(aot[:, :, wavelength_index] >= aot_min, fvf, np.nan)
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=1, cmap="jet"
)

../../_images/7b1a3a2c36ee204a670cf6d39ddc84317fedfdac8a2a1d626a8eacda50c35bcc.png

back to top

6. Advanced quality assessment#

Since the retrieval algorithm is based on optimal estimation by minimizing a \(\chi^2\) cost function defined as the difference between measurement (m) and forward model fitting (f), normalized by total uncertainties (\(\sigma\)).

\(\chi^2 = \frac{1}{N} \sum (f - m)^2/\sigma^2\)

Here N is the total number of measureents used in retreival. The algorithm also adaptively evalue fitting performance, if the fitting perform poor, it will be removed from the retreival process. Therefore, the \(\chi^2\) and \(N\) can be used to evaluate retrieval performance, the pixels with small \(\chi^2\) (good fitting) and large \(N\) (more pixels can be fitted) will better quality. A more quantitatively approach based on error propogation can be also used to compute retrieval uncertainty, which will be include in future product.

To support L3 data processing, a quality flag is also defined, which is usually based on \(\chi^2\) and \(N\). For the HARP2 test data, we choose

quality_flag = 0: when \(\chi^2<1.5\) and \(N_{ref}>60\) and \(N_{DoLP}>60\)
quality_flag = 1: when \(\chi^2<1.5\) and \(N_{ref}>40\) and \(N_{DoLP}>40\)
quality_flag > 1: for higher value \(\chi^2\) and lower values of \(N_{ref}\) and \(N_{DoLP}\) Quality flag will be updated with future L1 data calibration improvement.

chi2 = dataset["chi2"].values
nv_ref = dataset["nv_ref"].values
nv_dolp = dataset["nv_dolp"].values
quality_flag = dataset["quality_flag"].values

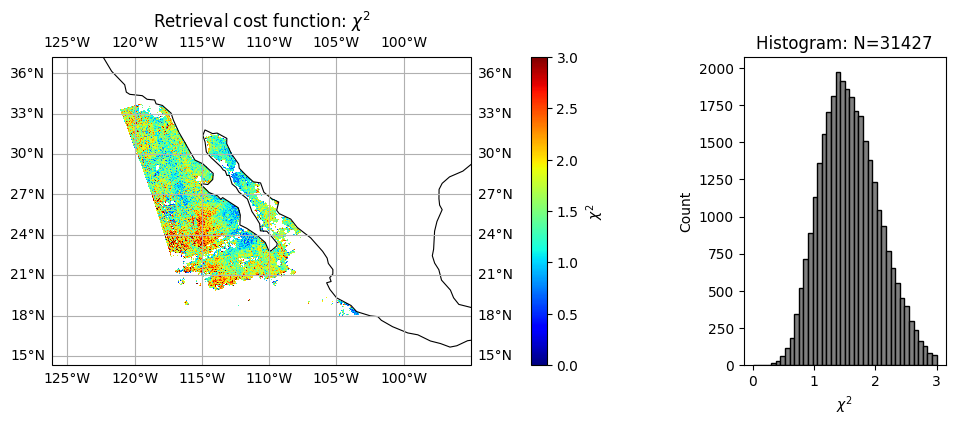

title = r"Retrieval cost function: $\chi^2$"
label = r"$\chi^2$"
data = chi2
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=3, cmap="jet"
)

../../_images/528d870356bc2a105fb7ccc2a89d9e884ad0a705fa586eae24f665a72bedf970.png

title = r"Total number of reflectance measurements"
label = r"$N_{ref}$"
data = nv_ref
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=90, cmap="jet"
)

../../_images/2651af96592e3eeefae0f6372662a3816f135d88237857f9a90bd10202183299.png

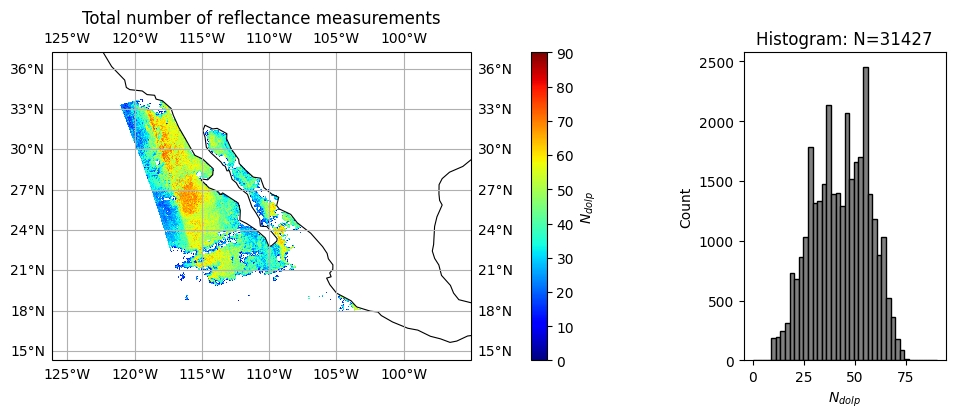

title = r"Total number of reflectance measurements"
label = r"$N_{dolp}$"
data = nv_dolp
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=90, cmap="jet"
)

../../_images/8bf1ff39e2304b5c84fb588253bec2c165a5462db08d229cd63c5597ab38b53b.png

np.nanmean(chi2), np.nanmean(nv_ref), np.nanmean(nv_dolp)

(np.float32(1.596987),
 np.float64(52.5191077735705),
 np.float64(42.87914850287969))

Note that \(\chi^2\) converges reasonably well with slight under fitting (averaged around 1.6, peaked around 1.3). Since HARP2 measures 90 angles across 4 bands, the average number of measurement satisfied good fitting are only 52 for reflectance and 42 for polarization, which indicate potential discrepany between forward model and measurements, due to forward model assumptions or likely measurement calibrations.

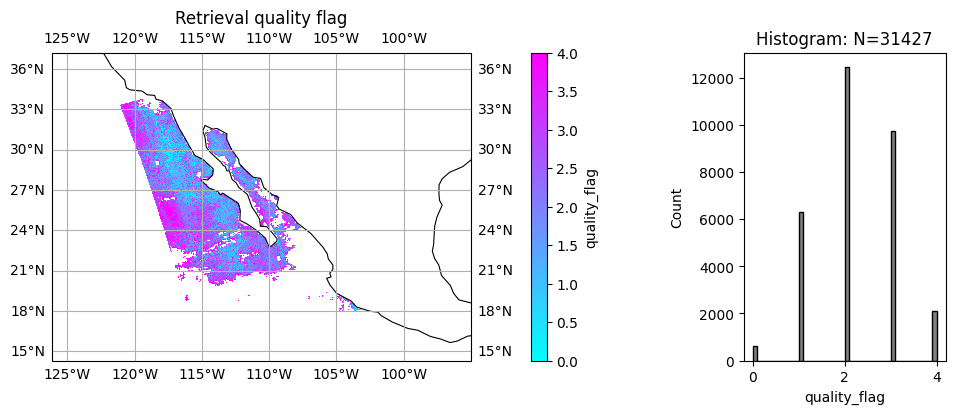

title = "Retrieval quality flag"
label = "quality_flag"
data = quality_flag
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=4, cmap="cool"
)

../../_images/20488f2215a6c1ad839b9b5bb96950e1378f398c61d2a11219756d4d65d643e0.png

We can evaluate quality flag based on the \(\chi^2\) and \(N\), and only a small portion of data near center of swath reach best quality as we defined as quality_flag=0. With the future improvement of data calibration, more data with better quality will be vailable.

back to top

7. Optional: Multi-angle data mask for cloud and data screening#

As mentioned previously, FastMAPOL algorithm conducted internal adaptive data screening on each HARP2 angle, the data mask are provided for both reflectance and DoLP. value 0 means the measurements are used in the retrievals, value 1 or NAN means the measurements are removed from retrieval. Therefore, the adaptive data mask can be also used to evaluate fitting quality and measurement quality at each angle. In the example below, please note the difference pattern for reflectance and polarization, which may indicates different calibration perforance.

mask_ref = dataset["mask_ref"].values
mask_dolp = dataset["mask_dolp"].values
mask_ref.shape, mask_dolp.shape

((395, 519, 90, 1), (395, 519, 90, 1))

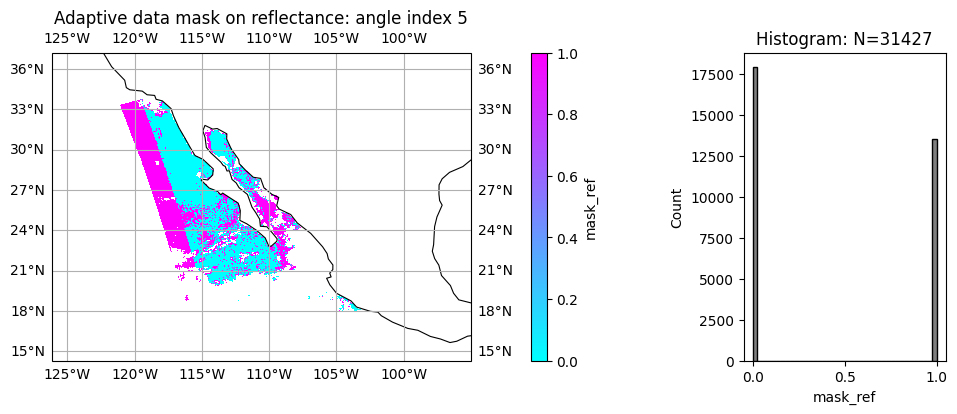

angle_index = 5
title = "Adaptive data mask on reflectance: angle index " + str(angle_index)
label = "mask_ref"
data = mask_ref[:, :, angle_index, 0]
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=1, cmap="cool"
)

../../_images/883336f5ed0d4c4be26e858d075e80148bf9a78d9d734ef78e774bb69b0f6b69.png

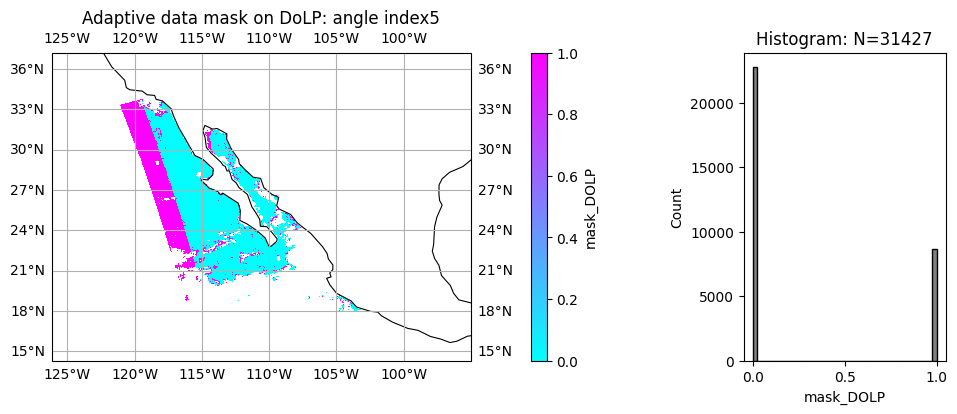

angle_index = 5
title = "Adaptive data mask on DoLP: angle index" + str(angle_index)
label = "mask_DOLP"
data = mask_dolp[:, :, angle_index, 0]
plot_l2_product(
    data, plot_range=plot_range, label=label, title=title, vmin=0, vmax=1, cmap="cool"
)

../../_images/6b9dfbb7941fe9b9892bf6a7033e4c7856c3f4188111b2334e075d06976d3884.png

back to top

8. Optional: pixel level uncertainty estimation.#

As mentioned previously, pixel level uncertainty can be evalated through error propagation, which propgation measurement uncertainty through Jacobian of the forward model. The estimated uncertainties are discussed in (Gao et al 2021) for HARP2 and AirHARP, but currently not included in the HARP2 L2 products.

back to top

9. Reference#

Gao, M., Franz, B. A., Knobelspiesse, K., Zhai, P.-W., Martins, V., Burton, S., Cairns, B., Ferrare, R., Gales, J., Hasekamp, O., Hu, Y., Ibrahim, A., McBride, B., Puthukkudy, A., Werdell, P. J., and Xu, X.: Efficient multi-angle polarimetric inversion of aerosols and ocean color powered by a deep neural network forward model, Atmos. Meas. Tech., 14, 4083–4110, https://doi.org/10.5194/amt-14-4083-2021, 2021.
Gao, M., Knobelspiesse, K., Franz, B. A., Zhai, P.-W., Sayer, A. M., Ibrahim, A., Cairns, B., Hasekamp, O., Hu, Y., Martins, V., Werdell, P. J., and Xu, X.: Effective uncertainty quantification for multi-angle polarimetric aerosol remote sensing over ocean, Atmos. Meas. Tech., 15, 4859–4879, https://doi.org/10.5194/amt-15-4859-2022, 2022.
Gao, M., Franz, B. A., Zhai, P.-W., Knobelspiesse, K., Sayer, A. M., Xu, X., Martins, J. V., Cairns, B., Castellanos, P., Fu, G., Hannadige, N., Hasekamp, O., Hu, Y., Ibrahim, A., Patt, F., Puthukkudy, A., and Werdell, P. J.: Simultaneous retrieval of aerosol and ocean properties from PACE HARP2 with uncertainty assessment using cascading neural network radiative transfer models, Atmos. Meas. Tech., 16, 5863–5881, https://doi.org/10.5194/amt-16-5863-2023, 2023.
